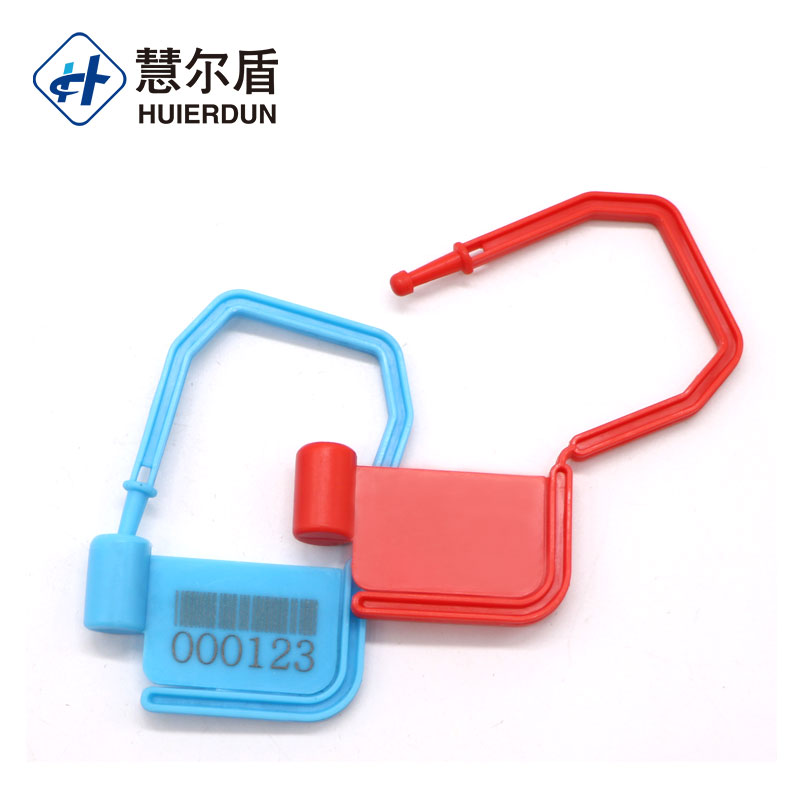

HED-PL100 tamper proof abs plastic padlock seal

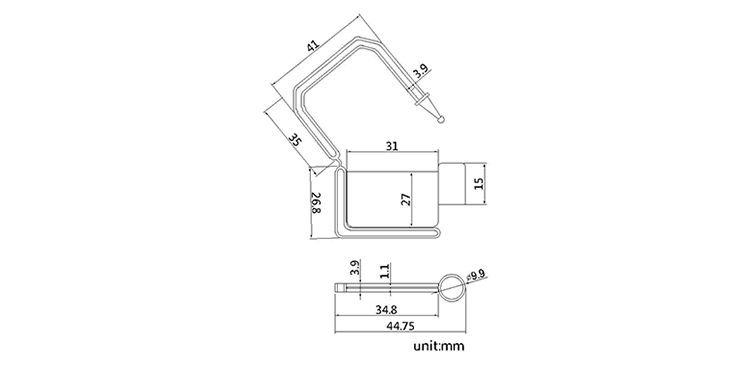

CAD：

Paramete:

	Specification
Model	HED-PL100
Material	PP
Lock body size	41*62*4mm
Cylinder material	POM
Pull	>150N
Shell color	Red, yellow, orange, blue, green, etc.
Marking method	Laser marking, hot stamping
Marking content	Numbers, letters, signs, barcodes, etc.
Certificate	ISO9001, ISO14001, ISO18001

Company Profile：

Huier Shield (Shandong) Intelligent Technology Co., Ltd has been one of the considerable one-time lock manufacturers in China. It specializes in producing Lead Seals, Shi Blockade, Plastic Seals, Meter Box Block, Bird Prevention Device, Cable Sheath, Signboard, and High Security Seals. Having professional equipment for Shi Blockade more than 260 units, covering an area more than ten thousand square meters, Huierdun has now developed into a capable and comprehensive enterprise combinning R&D, design, production and sales.

Company workshop：

our company features low cost and better anti-theft performance, and they are now widely sold throughout the country and abroad in various transport sectors: such as railway transport, air freight, cargo, oil transportation, chemical products transportation, post offices transport, medicine transport and other industries.

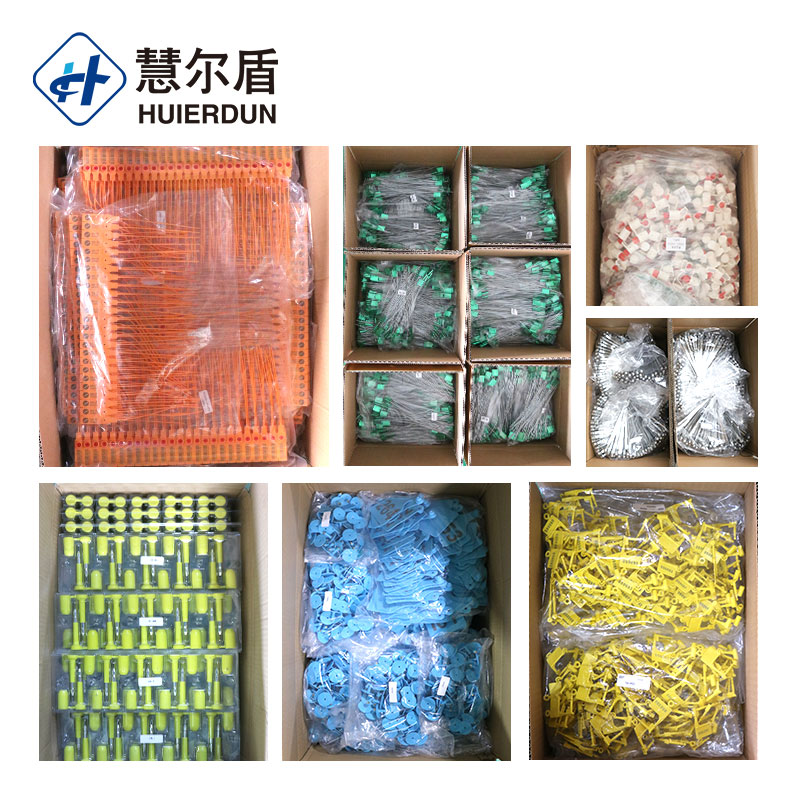

Products Packaging：
