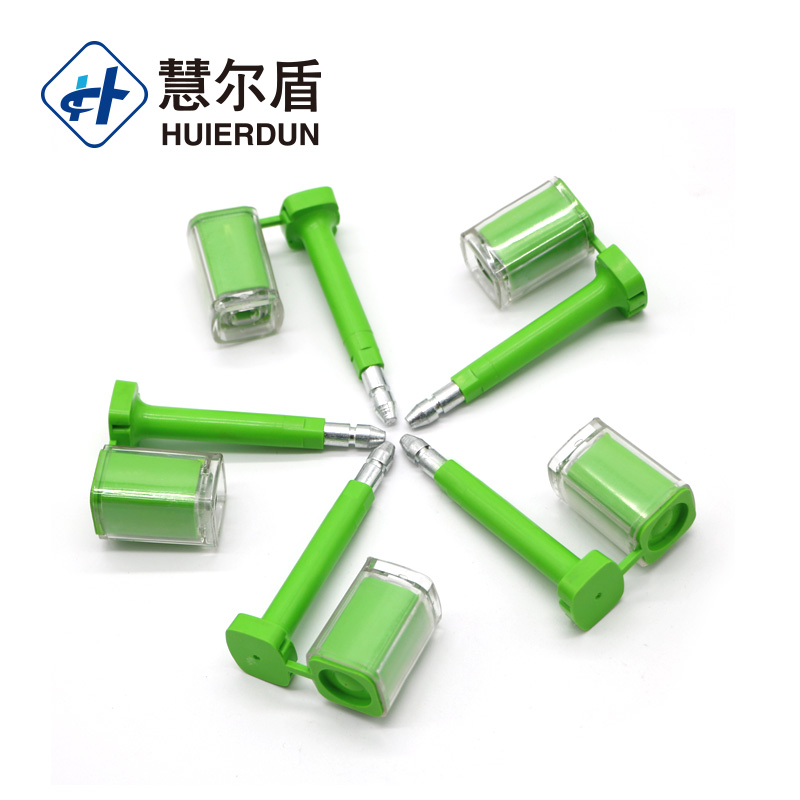

HED-BS119 container seal

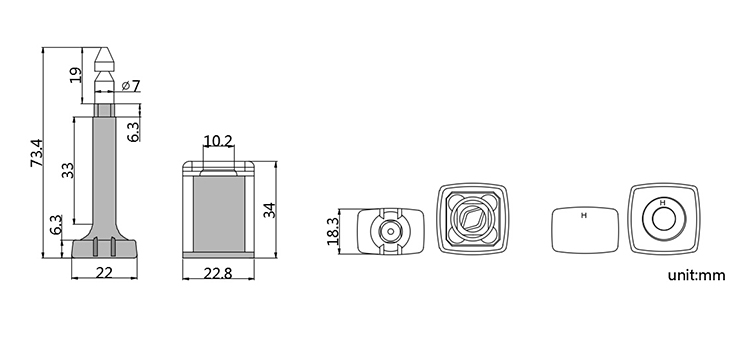

CAD：

Paramete:

	specification
model	HED-BS119
material	ABS, Q235A low carbon steel
height	73.4mm
diameter	7mm
Production height	72-110mm
pull	>15KN
Shell color	Red, yellow, orange, blue, green, etc.
Inner rod color	White zinc plated
Circlip material	Carbon spring steel
Marking method	Laser marking, hot stamping
Marking content	Numbers, letters, signs, barcodes, etc.
Certificate	ISO9001, ISO14001, ISO18001

Company Profile：

Huier Shield (Shandong) Intelligent Technology Co., Ltd has been one of the considerable one-time lock manufacturers in China. It specializes in producing Lead Seals, Shi Blockade, Plastic Seals, Meter Box Block, Bird Prevention Device, Cable Sheath, Signboard, and High Security Seals. Having professional equipment for Shi Blockade more than 260 units, covering an area more than ten thousand square meters, Huierdun has now developed into a capable and comprehensive enterprise combinning R&D, design, production and sales.

Company workshop：

our company features low cost and better anti-theft performance, and they are now widely sold throughout the country and abroad in various transport sectors: such as railway transport, air freight, cargo, oil transportation, chemical products transportation, post offices transport, medicine transport and other industries.

Products Packaging：
